Model Description


LEAN AND MEAN

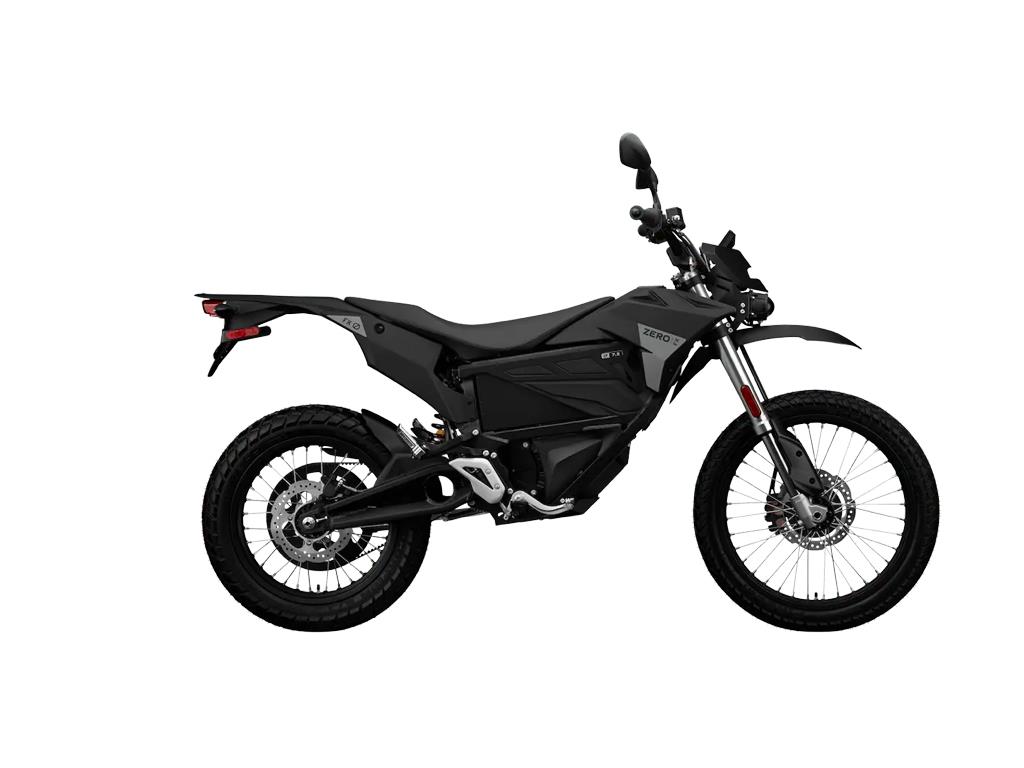

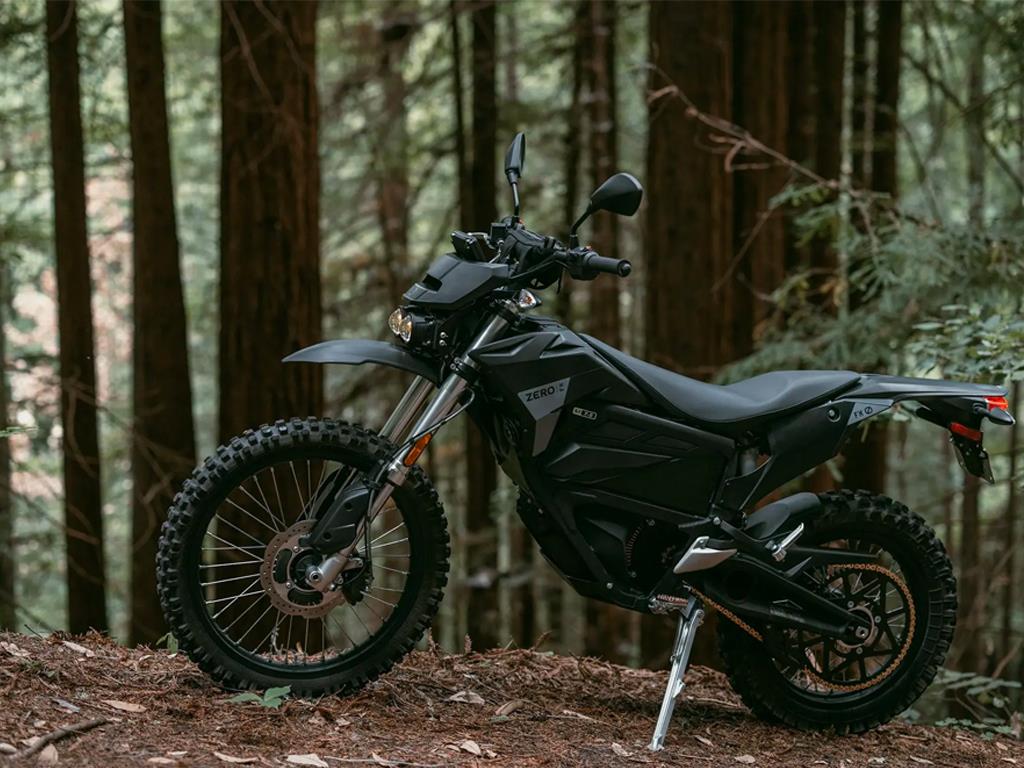

The Zero FX draws from our rugged off-road roots. Locked and loaded for your favorite trails, shortcuts or rocketing away when traffic lights flash green, the Zero FX’s punchy Z-Force® powertrain, long legged suspension and dual sport equipment tackles virtually anything thrown its way.

TUNED IN TO YOUR RIDE

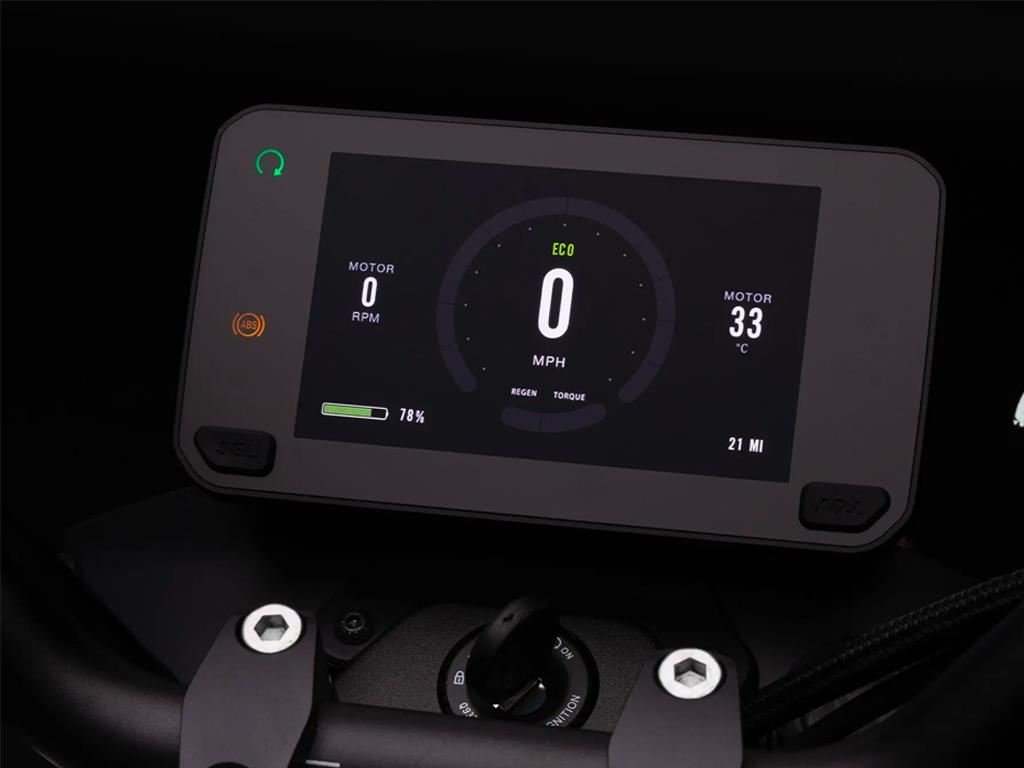

Crossing from smooth asphalt to loose gravel fire roads? All good. Change performance profiles at the press of a button to master any terrain. The Zero FX is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles app where you can also see detailed ride stats.

CHARGE. SIMPLY.

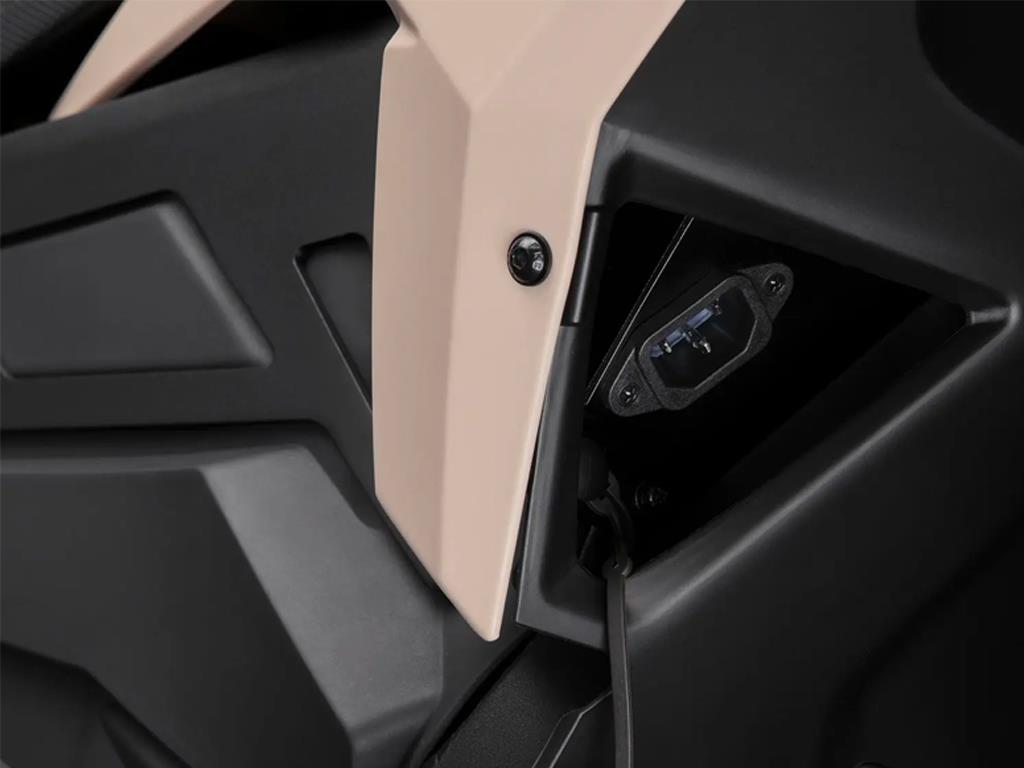

Wake up, ready to ride, with a “full tank” every day. No expensive charge station required. A simple 220 V household outlet satisfies all the needs of the Zero FX’s 650-watt onboard charger. Every outlet is now a “fueling” station.

Model Specification


  • Performance

    City

    91 miles (146 km)

    Highway, 55 mph (89 km/h)

    56 miles (90 km)

    Highway, 55 mph (89 km/h) Combined

    69 miles (111 km)

    Highway, 70 mph (113 km/h)

    39 miles (63 km)

    Highway, 70 mph (113 km/h) Combined

    54 miles (87 km)

  • Engine

    Peak torque

    78 ft-lb (106 Nm)

    Peak power

    46 hp (34 kW) @ 4,300 rpm

    Top speed (max)

    85 mph (137 km/h)

    Top speed (sustained)

    70 mph (113 km/h)

    Type

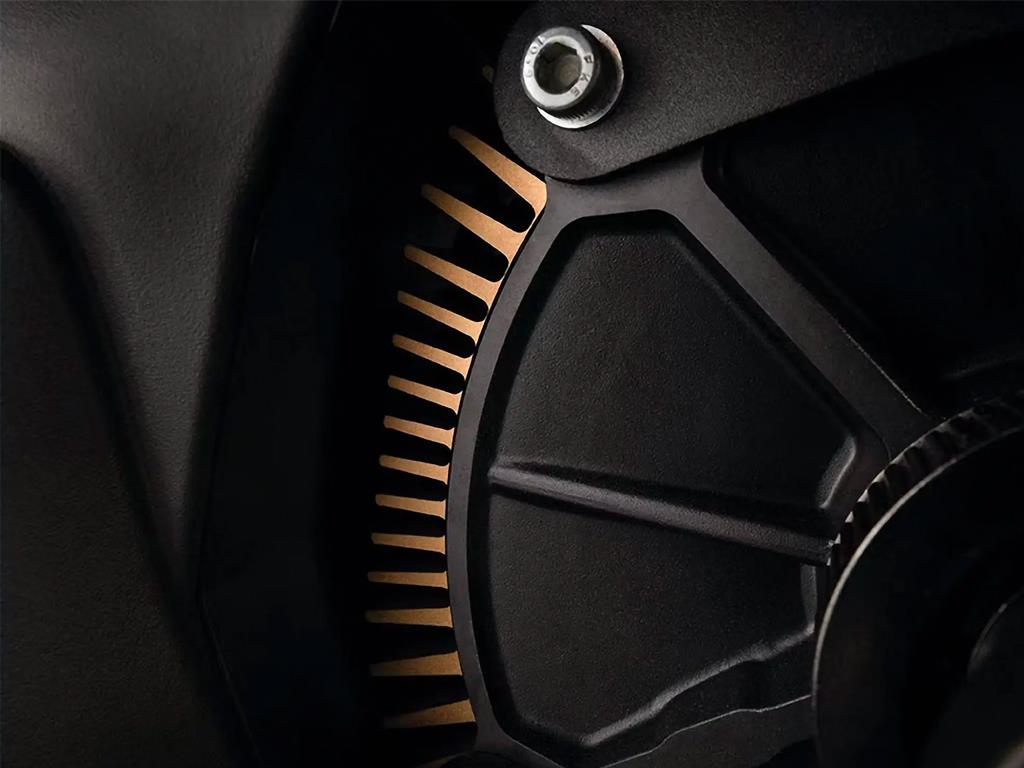

    Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor

    Controller

    High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration

    Power pack

    Z-Force® Li-Ion intelligent integrated

  • Other

    Required licence

    A2 licence

    Max capacity

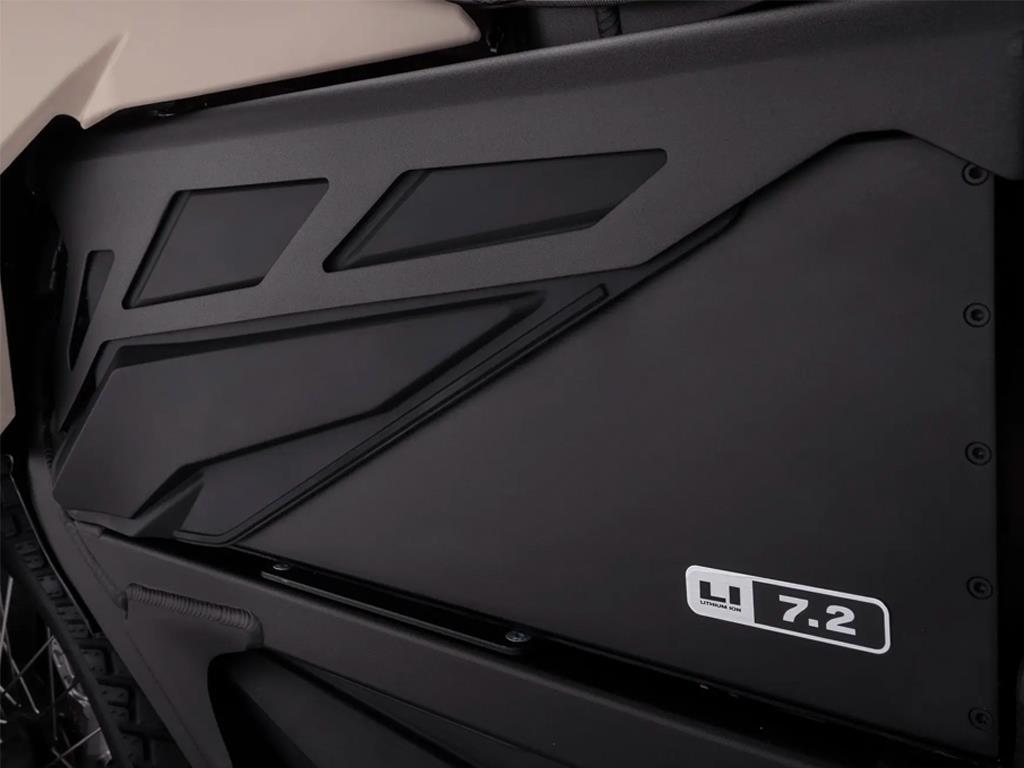

    7.2 kWh

    Nominal capacity

    6.3 kWh

    Charger type

    650 W, integrated

    Charge time (standard)

    9.7 hours (100% charged) / 9.2 hours (95% charged)

    Charge time (standard) With 6 kW Rapid Charge opti

    Charge time (standard) With EVSE cord and standard

    Equivalent fuel economy (city)

    486 MPGe (0.48 l/100 km)

    Equivalent fuel economy (highway)

    207 MPGe (1.13 l/100 km)

    Typical cost to recharge

    £0.97

  • Transmission

    Transmission

    Clutchless direct drive

    Final drive

    90T / 18T, Poly Chain® HTD® Carbon™ belt

  • Suspension

    Front suspension

    Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping

    Rear suspension

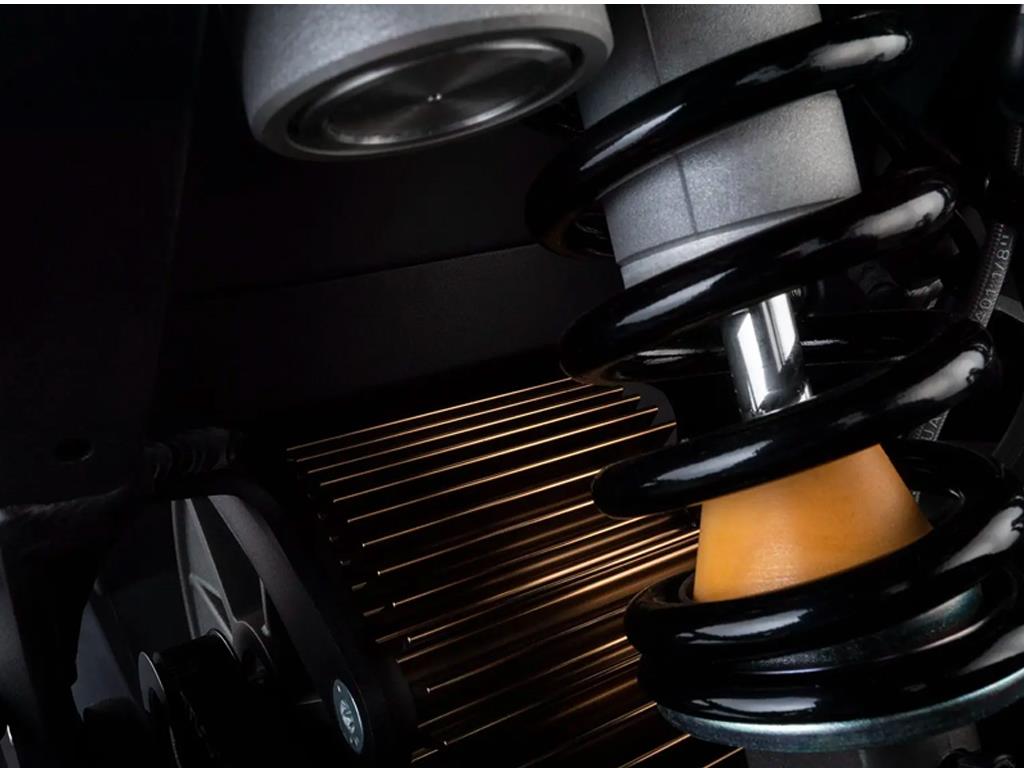

    Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping

    Front suspension travel

    8.60 in (218 mm)

    Rear suspension travel

    8.94 in (227 mm)

  • Brakes

    Front brakes

    Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc

    Rear brakes

    Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc

  • Wheels

    Front tire

    Pirelli Scorpion MT 90 A/T 90/90-21

    Rear tire

    Pirelli Scorpion MT 90 A/T 120/80-18

    Front wheel

    1.85 x 21

    Rear wheel

    2.50 x 18

  • Dimensions

    Wheelbase

    56.6 in (1,438 mm)

    Seat height

    34.7 in (881 mm)

    Seat height Accessory, low

    Seat height Accessory, tall

    Rake

    25.4°

    Trail

    4.1 in (104 mm)

    Curb weight

    289 lb (131 kg)

    Carrying capacity

    341 lb (155 kg)
